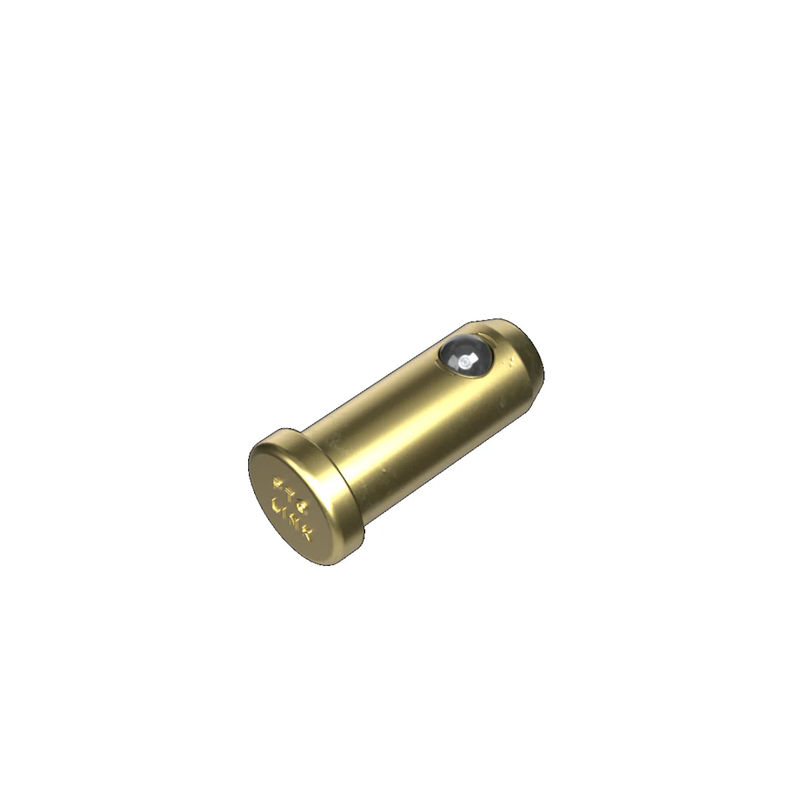

PTO Link® Compact System – Safety Bolt – SPARE

DescriptionThe PTO Link® Compact – Safety Bolt is designed to fully align the connected couplers of the PTO Link® System. The required Safety Bolt further secures the couplers, much like a deadbolt lock, to minimize vibration and wear to the driveline, withstand most high-torque scenarios or instances of reverse torque on the PTO shaft, and provide safety, protection, and durability to the PTO Link® System.Product Features:Installs from the tractor side toward the implement sideGrade 8 Alloy Steel (rated shear strength at 150 ksi)Stand-alone one-piece locking clevis pin is a pin and cotter all in oneStrong, spring-loaded wedge plunger that functions as an easy insertion rampPlunger retracts when inserted and springs back up when inserted fully through the system couplersDimensions: 1.225ʺ L x 0.630ʺ WWeight: 1.1 oz; Shipping weight: 2 ozNOTE: A Safety Plunger Pin is included with every Compact Tractor (Female) Coupler, but spares are recommended since it is a stand-alone pin and can be misplaced when not in use.IMPORTANT SAFETY NOTE: Since high torque or reverse torque scenarios on the PTO are omen unforeseen, installing the Safety Plunger Pin while using the PTO Link® system is always required.INSTALL: Amer the two couplers of the PTO Link® System are connected and fully locked, locate the aligned 1⁄2ʺ opening through both couplers positioned across from the spring-loaded locking pin. Insert the Safety Plunger Pin through the 1⁄2ʺ opening of both couplers, starting from the tractor side towards the implement side until it emerges through the couplers. The spring-loaded wedge plunger will release its internal spring and secure the couplers together.UNINSTALL: Depress the spring-loaded wedge plunger and push the end of the Safety Plunger Pin toward the tractor. Then, pull the head of the pin from the tractor side until it is entirely removed from the couplers. When the PTO Link® System is not in use, affix the Safety Plunger Pin through the 1⁄2ʺ opening on the Tractor Coupler or Implement Coupler for convenient storage.
