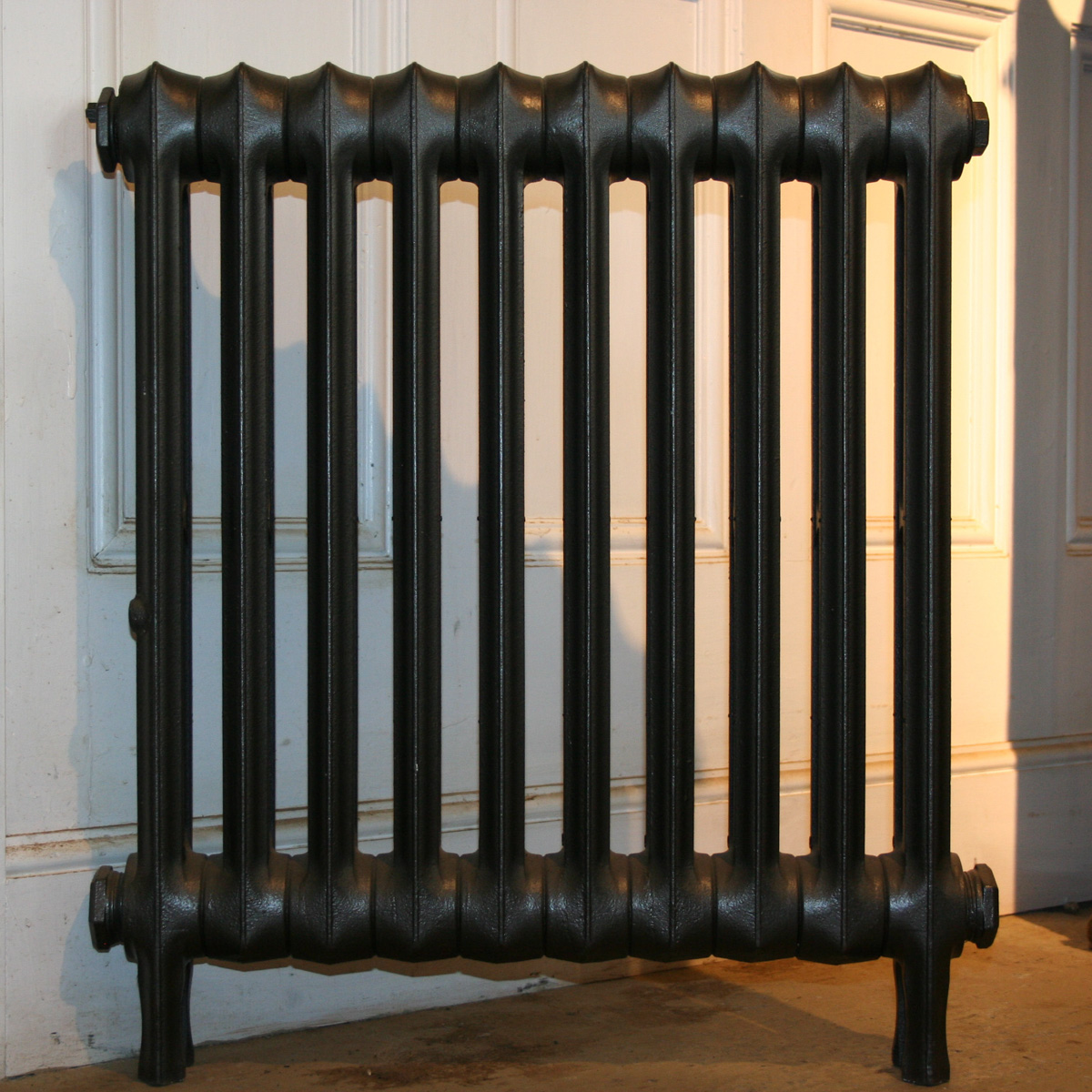

Pall Mall 2 Column 18in

Technical Data Model Specifications Attribute Value Exponent, n 1.2008 Factor, Km 0.3191 Height With Legs (mm) 457 Height Without Legs (mm) 387 Bottom Inlet To Floor (mm) 102 Max Section Depth (mm) 67 Mid Section Depth (mm) 67 Output (ΔT50, W) 35 Output (ΔT30, W) 18 Interaxis Distance (mm) 321 Section Length (mm) 51 Internal Volume (L) 0.3 Empty Leg Section Weight (kg) 2.7 Empty Mid Section Weight (kg) 2.2 Casting Origin Ipswich, England Heating Medium Hydronic, One-pipe steam, Two-pipe steam Construction Types Threaded nipples Connection Options BBOE, TBOE, TBSE Sizes Available SKU N Secs Length (L, mm) Output (∆T50, Watts) Output (∆T30, Watts) Delivery pieces Price from ORC-C-PM-2C18-7 7 387 245 126 1 £0.00 8279 ORC-C-PM-2C18-10 10 540 350 180 1 £0.00 8279 ORC-C-PM-2C18-12 12 642 420 216 1 £0.00 8279 ORC-C-PM-2C18-26 26 1356 910 468 1 £0.00 8279 Related products Crane Hospital Narrow 24in From: £0.00 Crane Hospital Narrow 18in From: £0.00 Pall Mall 9 Column 13in From: £0.00 Pall Mall 6 Column 18in From: £0.00
