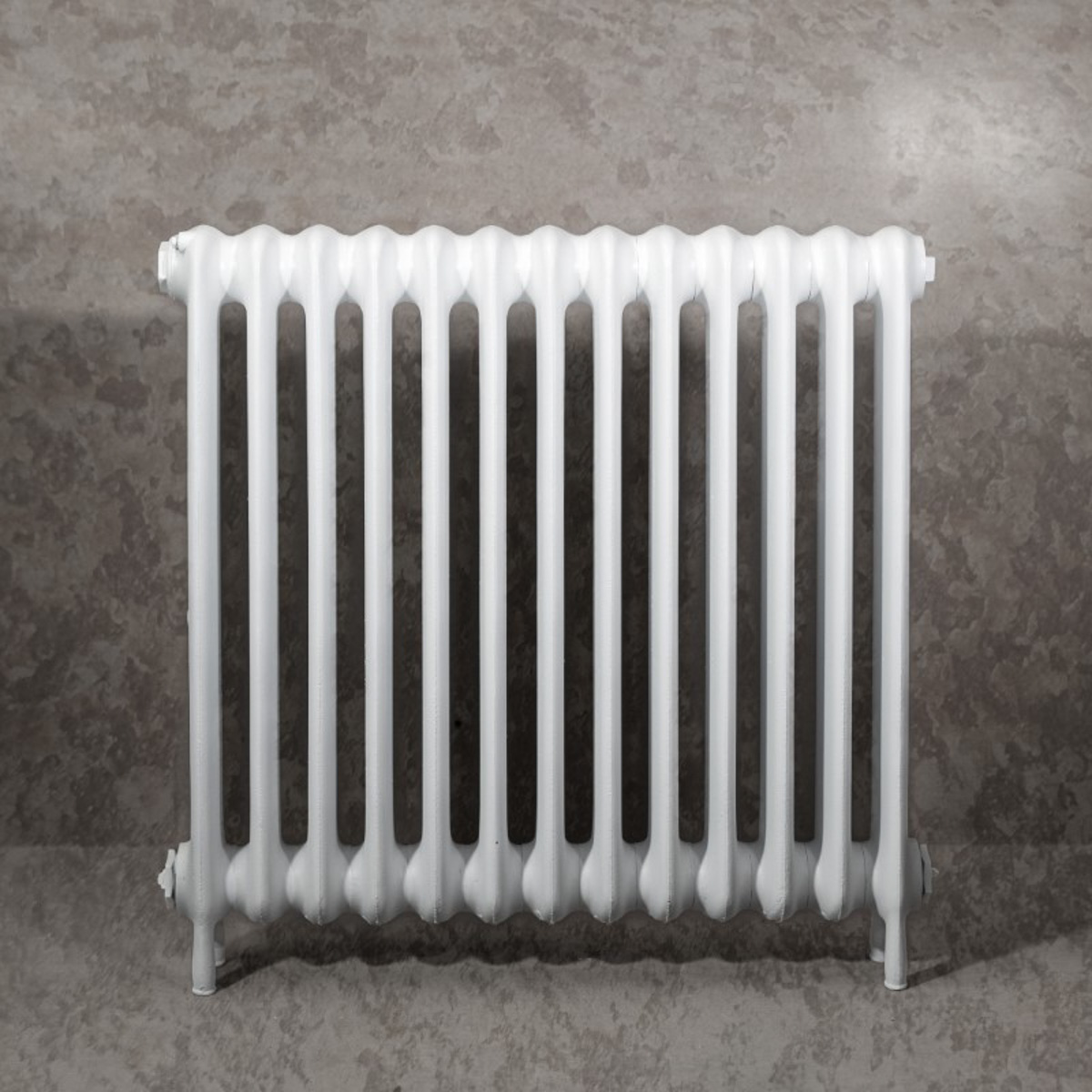

Beeston Hospital Narrow 30in

Technical Data Model Specifications Attribute Value Exponent, n 1.25 Factor, Km 0.42 Height With Legs (mm) 762 Height Without Legs (mm) 711 Bottom Inlet To Floor (mm) 102 Max Section Depth (mm) 89 Mid Section Depth (mm) 89 Output (ΔT50, W) 56 Output (ΔT30, W) 29 Interaxis Distance (mm) 641 Section Length (mm) 76 Internal Volume (L) 0.68 Empty Leg Section Weight (kg) 6 Empty Mid Section Weight (kg) 5.4 Casting Origin Nottingham, England Heating Medium Hydronic, One-pipe steam, Two-pipe steam Construction Types Threaded nipples Connection Options BBOE, TBOE, TBSE Sizes Available SKU N Secs Length (L, mm) Output (∆T50, Watts) Output (∆T30, Watts) Delivery pieces Price from ORC-B-H-N30-8 8 638 448 232 1 £0.00 8077 ORC-B-H-N30-11 11 866 616 319 1 £0.00 8077 ORC-B-H-N30-15 15 1170 840 435 1 £0.00 8077 ORC-B-H-N30-26 26 2006 1456 754 1 £0.00 8077 ORC-B-H-N30-28 28 2158 1568 812 1 £0.00 8077 ORC-B-H-N30-30 30 2310 1680 870 1 £0.00 8077 Related products Duchess 1 Column 24in From: £0.00 Princess 1 Column 18in From: £0.00 Beeston Hospital Wide 36in From: £0.00 Duchess 1 Column 36in From: £0.00
