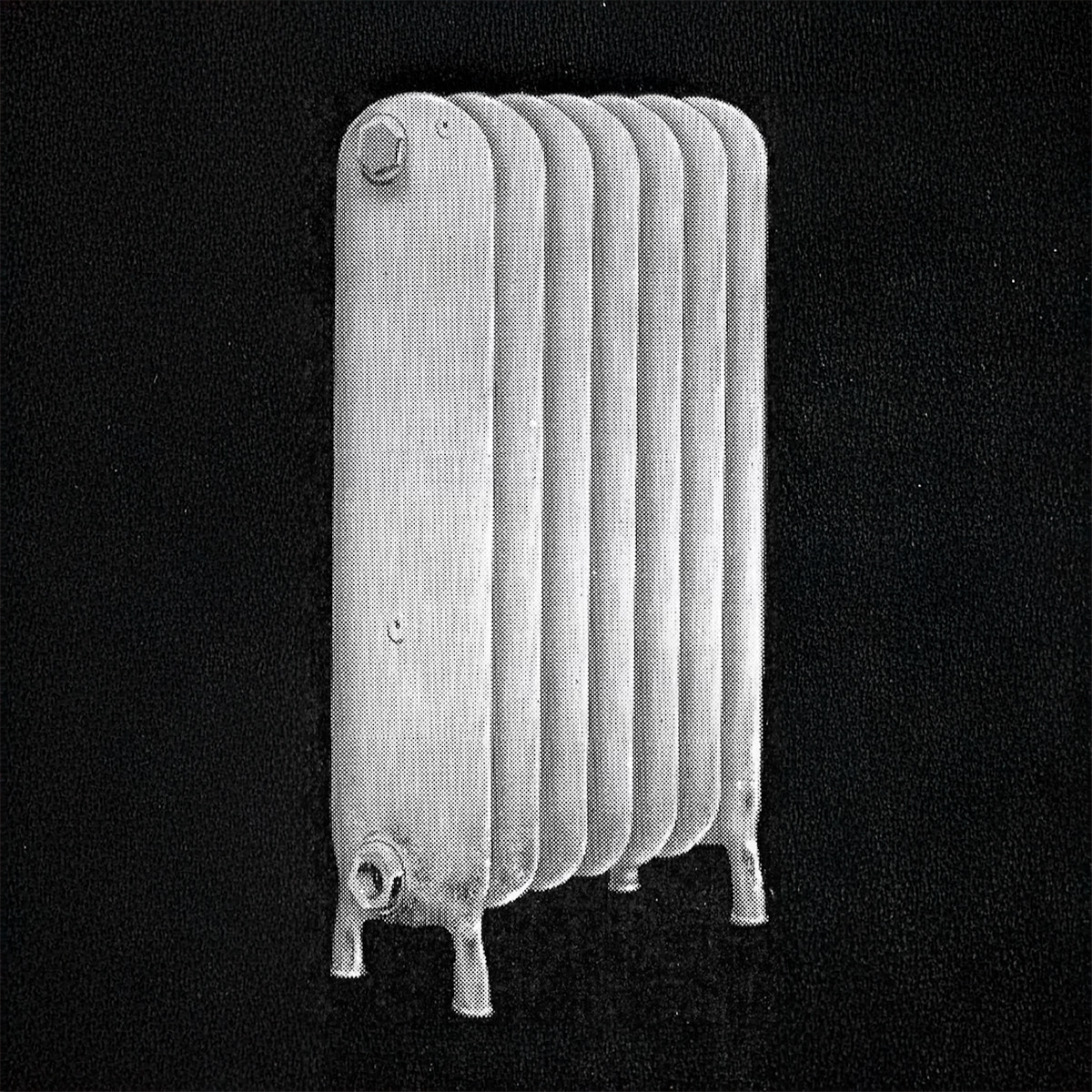

Beeston Hospital Wide 24in

Technical Data Model Specifications Attribute Value Exponent, n 1.25 Factor, Km 0.88 Height With Legs (mm) 610 Height Without Legs (mm) 546 Bottom Inlet To Floor (mm) 108 Max Section Depth (mm) 178 Mid Section Depth (mm) 178 Output (ΔT50, W) 117 Output (ΔT30, W) 60 Interaxis Distance (mm) 472 Section Length (mm) 76 Internal Volume (L) 1.33 Empty Leg Section Weight (kg) 13 Empty Mid Section Weight (kg) 11.7 Casting Origin Nottingham, England Heating Medium Hydronic, One-pipe steam, Two-pipe steam Construction Types Threaded nipples Connection Options BBOE, TBOE, TBSE Sizes Available SKU N Secs Length (L, mm) Output (∆T50, Watts) Output (∆T30, Watts) Delivery pieces Price from ORC-B-H-W24-17 17 1322 1989 1020 1 £0.00 8084 ORC-B-H-W24-18 18 1398 2106 1080 1 £0.00 8084 ORC-B-H-W24-22 22 1702 2574 1320 1 £0.00 8084 Related products Princess 2 Column 36in From: £0.00 Decorated 3 Column 39in From: £0.00 Princess Window 13in From: £0.00 Beeston Hospital Narrow 30in From: £0.00
