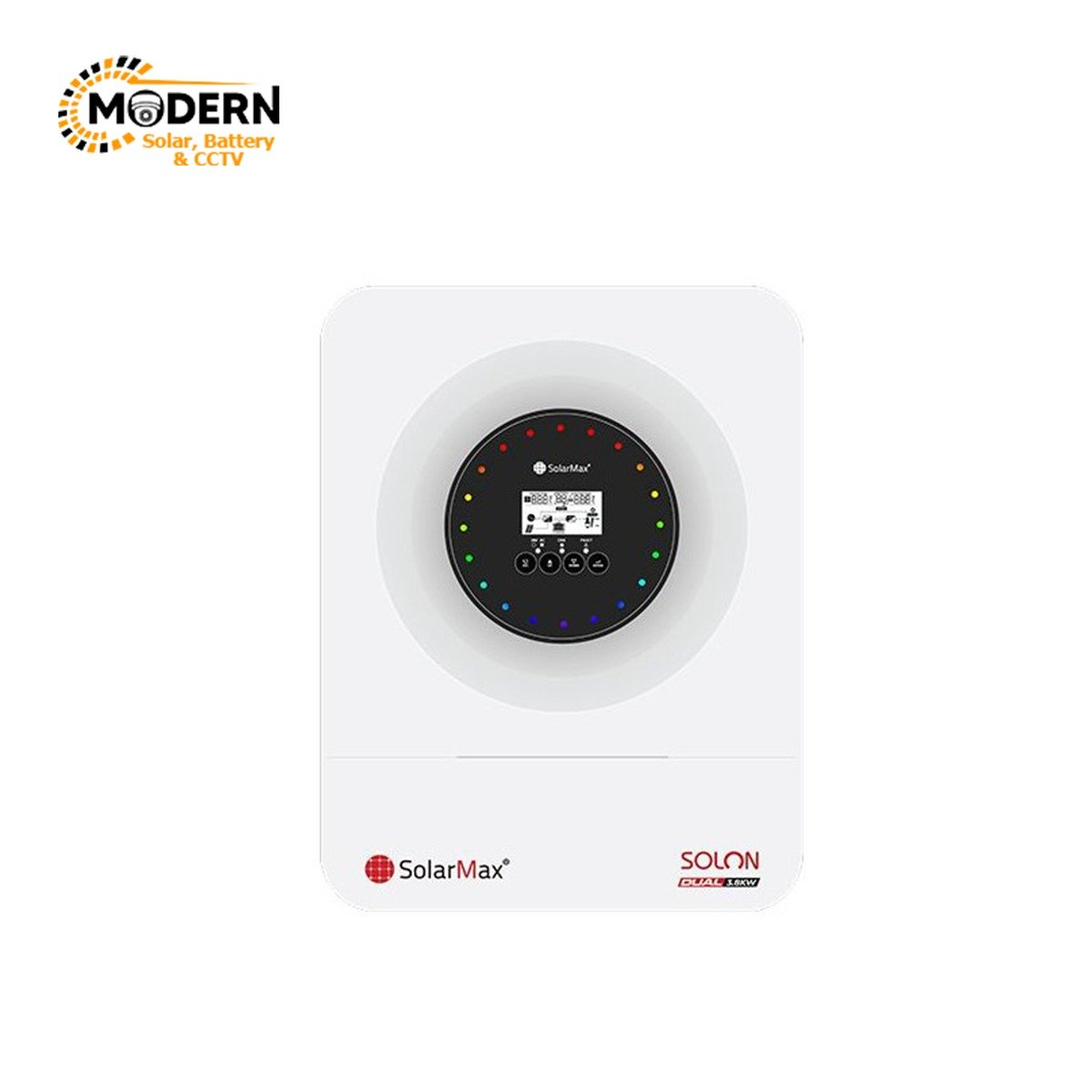

SolarMax Solon Dual Series 3.8KW Off-Grid Inverter

SolarMax Solon Dual Series 3.8KW Off-Grid Inverter The SolarMax Solon Dual Series 3.8KW is an efficient and flexible off-grid inverter designed for small to medium solar installations. It works with or without a 24V battery, providing reliable power management for homes, offices, or light commercial use. Equipped with dual AC outputs, advanced MPPT charge controller, and built-in WiFi for remote monitoring, this inverter optimizes energy usage while delivering clean, pure sine wave power. Its robust design supports stable voltage output, surge protection, and wide temperature/humidity ranges for dependable operation in diverse environments. With user-friendly LCD display and smart energy management features, the SolarMax Solon Dual Series 3.8KW ensures maximum solar utilization, battery safety, and uninterrupted power supply. �� Key Features Rated Power: 3800W, ideal for low to medium power applications AC Input Voltage: 230V AC with selectable ranges (170-280V for PCs, 90-280V for appliances) Frequency Range: 50Hz/60Hz auto-sensing Surge Power: 7600VA for handling startup loads Pure Sine Wave Output: Ensures clean power for sensitive devices Dual AC Outputs: Separate outputs for normal and heavy loads Battery & Solar Charging: 24V battery support, MPPT solar charging, max PV array power 6000W High Charging Current: Max 120A from solar, 100A from grid Battery Protection: Adjustable low/high voltage cutoff (21-24V low, 25-30V high) Remote Monitoring: Built-in WiFi, RS485 for BMS-compatible lithium batteries LCD Display: Easy monitoring of voltage, battery state, and system status Durable & Flexible: Operating temperature -10°C to 50°C, humidity 5–90% non-condensing Warranty: 2-Year parts replacement ⚡ Product Specifications Specification Description Model SM-SOLON-DUAL-3.8KW Rated Power 3800W AC Input Voltage 230V AC Selectable AC Voltage Range 170–280V (PC), 90–280V (Appliances) Frequency Range 50/60Hz auto-sensing AC Voltage Regulation (Battery Mode) 230V ±5% Surge Power 7600VA Waveform Pure Sine Wave Transfer Time 10ms (PC), 20ms (Appliances) Dual AC Output 3800W Battery Voltage 24V DC Floating Charge Voltage 27V DC Overcharge Protection 30V DC Battery Low Cutoff 21–24V Battery High Voltage Range 25–30V Works Without Battery Yes Maximum PV Array Power 6000W Maximum PV Input Voltage 500V DC MPPT Range 60–450V DC Maximum PV Input Current 27A Maximum Charging Current 120A Maximum Efficiency 98% Communication Interface Built-in WiFi, RS485 (BMS compatible) Display LCD Operating Temperature -10°C to 50°C Storage Temperature -15°C to 60°C Humidity 5–90% RH (non-condensing) Dimensions (D x W x H) 125 x 340 x 420 mm Net Weight 8.84kg
