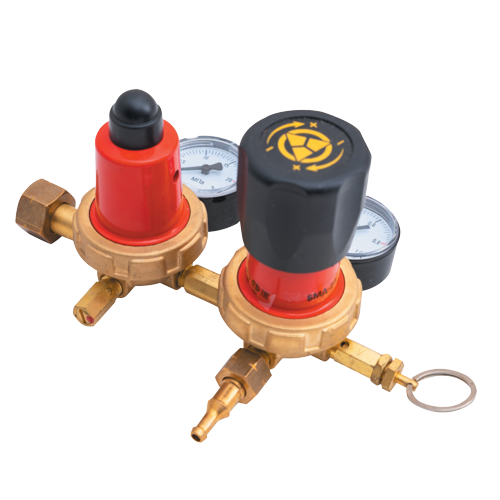

Two-stage pressure regulator 2RM-200DM

The pressure regulator 2RM-200DM is designed to reduce, regulate and automatically maintain a constant set working pressure of methane during its supply to the source of consumption. Can be used for hydrogen. Gas pressure is reduced in two stages: in the first stage – from high to medium pressure, in the second stage – from medium to low pressure. Reduction of gases in two stages allows to achieve precise maintenance of the setting pressure at the output of the pressure regulator. Two-stage pressure regulators are mainly used in laboratory equipment, special devices and other equipment that requires the accuracy of pressure maintenance. Maximum flow capacity, m³/h – 25,0 Maximum gas pressure at the inlet, MPa (bar) – 23 (230) Maximum working gas pressure, MPa (bar) – 0,8 (8,0) Overall dimensions, no more than, mm – 225х175х125 Weight, no more than, kg – 1,6 Two-stage pressure regulators
