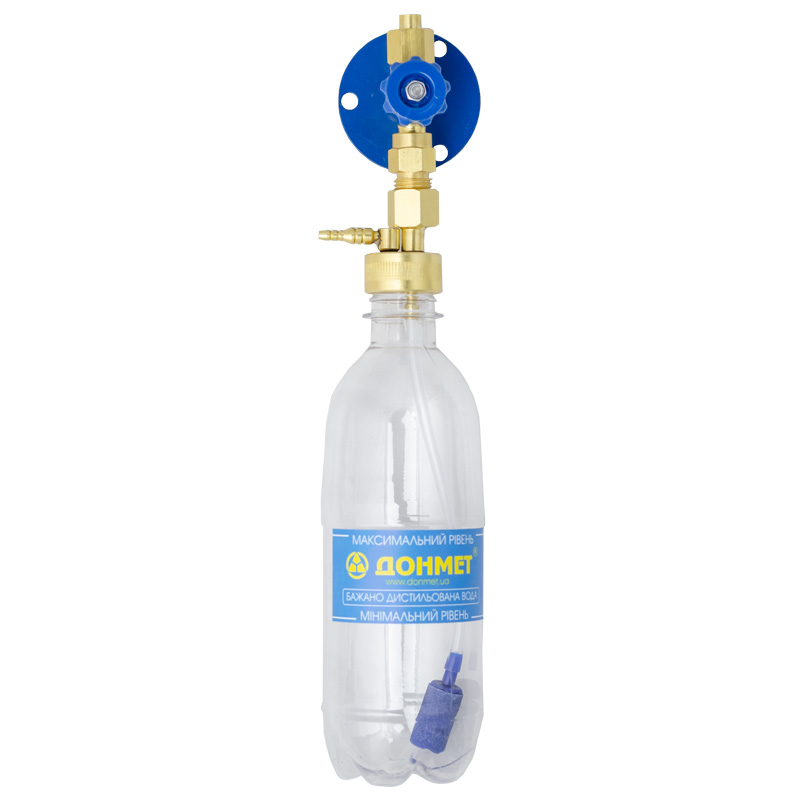

Wall-mounted oxygen dispenser with humidifier

Wall-mounted oxygen dispenser with humidifier The set includes: direct dispenser 810.000.11 (with adapter M16x1.5) and humidifier 963.000.00 Parameter Value Inlet pressure, bar 1,5 -5 Inlet thread (for line connection) М14×1 (nut and nipple for flaring) Humidifier productivity (at an oxygen consumption of 5 l/min), mg/liter 18 Useful (working) volume of the humidifier liquid container, ml. 350 Pressure drop, kPa (without load on the output nipple): with a minimum consumption of 5 l/min 9 with a maximum consumption of 15 l/mi 37 with a maximum consumption of 25 l/min – Diameters of the nipple at the outlet for connecting the fitting, mm 4,5 / 7 Oxygen flow, l/min 0…25 Outlet thread G 1/4 Humidifier inlet thread Nut М16х1,5 Thread for connecting to a container with water (bottles) 28 mm Neck PCO 1810 Overall dimensions (no more), mm 385 х 130 х 75 Weight, kg 0,67
